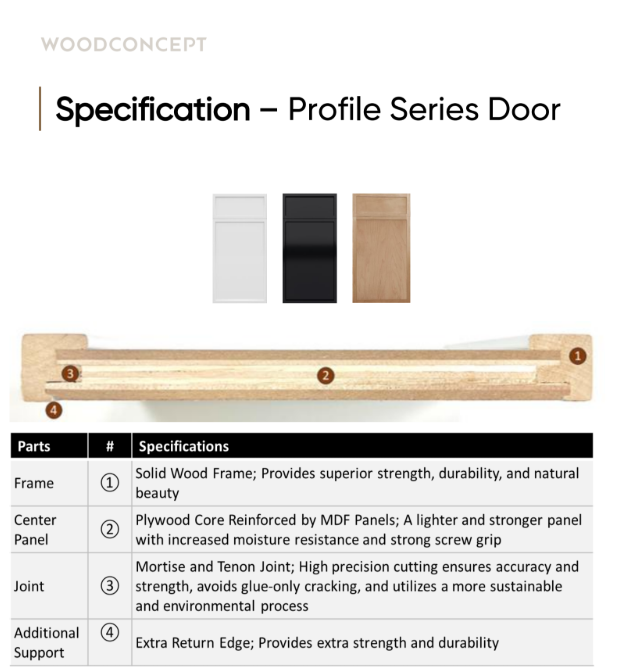

Profile Series Door
Solid wood frame, reinforced center panel, mortise and tenon joint, and additional return-edge support.
View full specification ↗Woodconcept
Construction & Specifications
Explore door, base cabinet, and wall cabinet construction. Select a sheet to read it at full size.

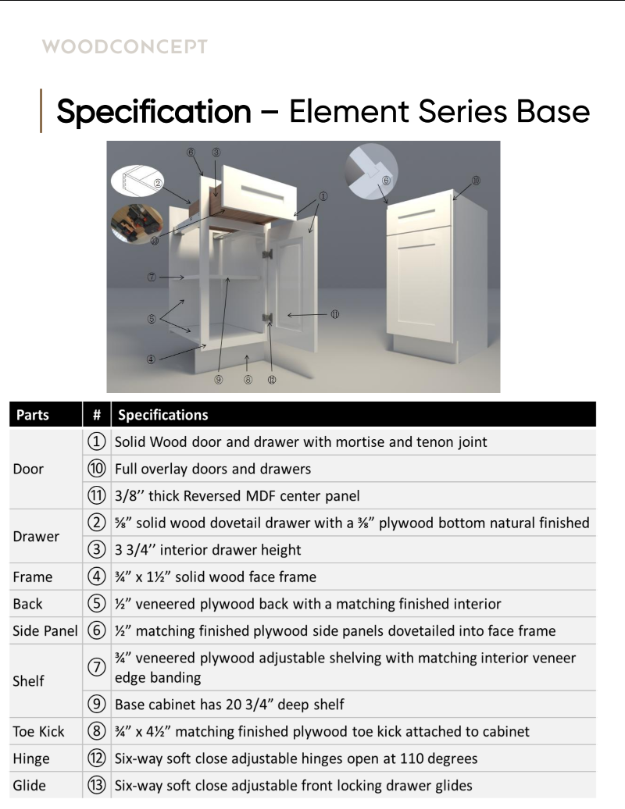

Element Series Base
Door and drawer construction, plywood cabinet components, shelving, soft-close hinges, and drawer glides.
View full specification ↗

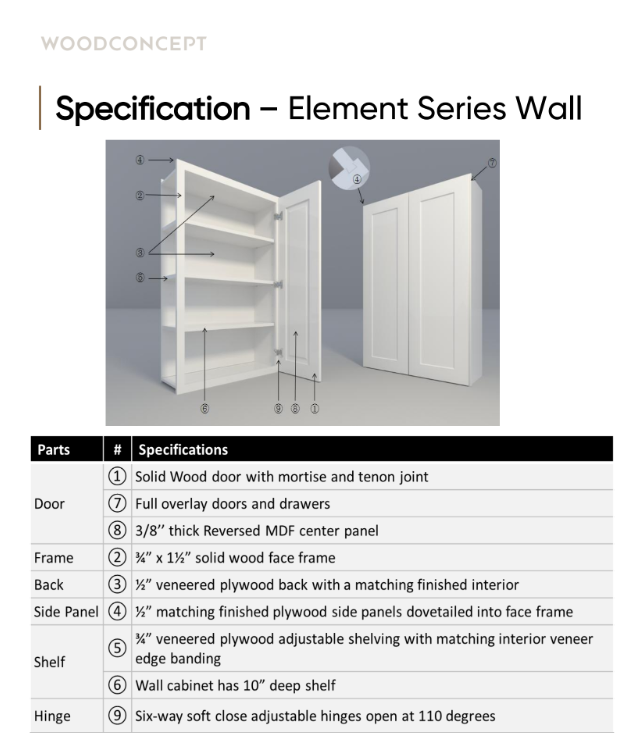

Element Series Wall
Door construction, solid wood face frame, plywood panels, adjustable shelving, and soft-close hinges.
View full specification ↗Finewood & Forevermark Cabinetry
Cabinet Specifications

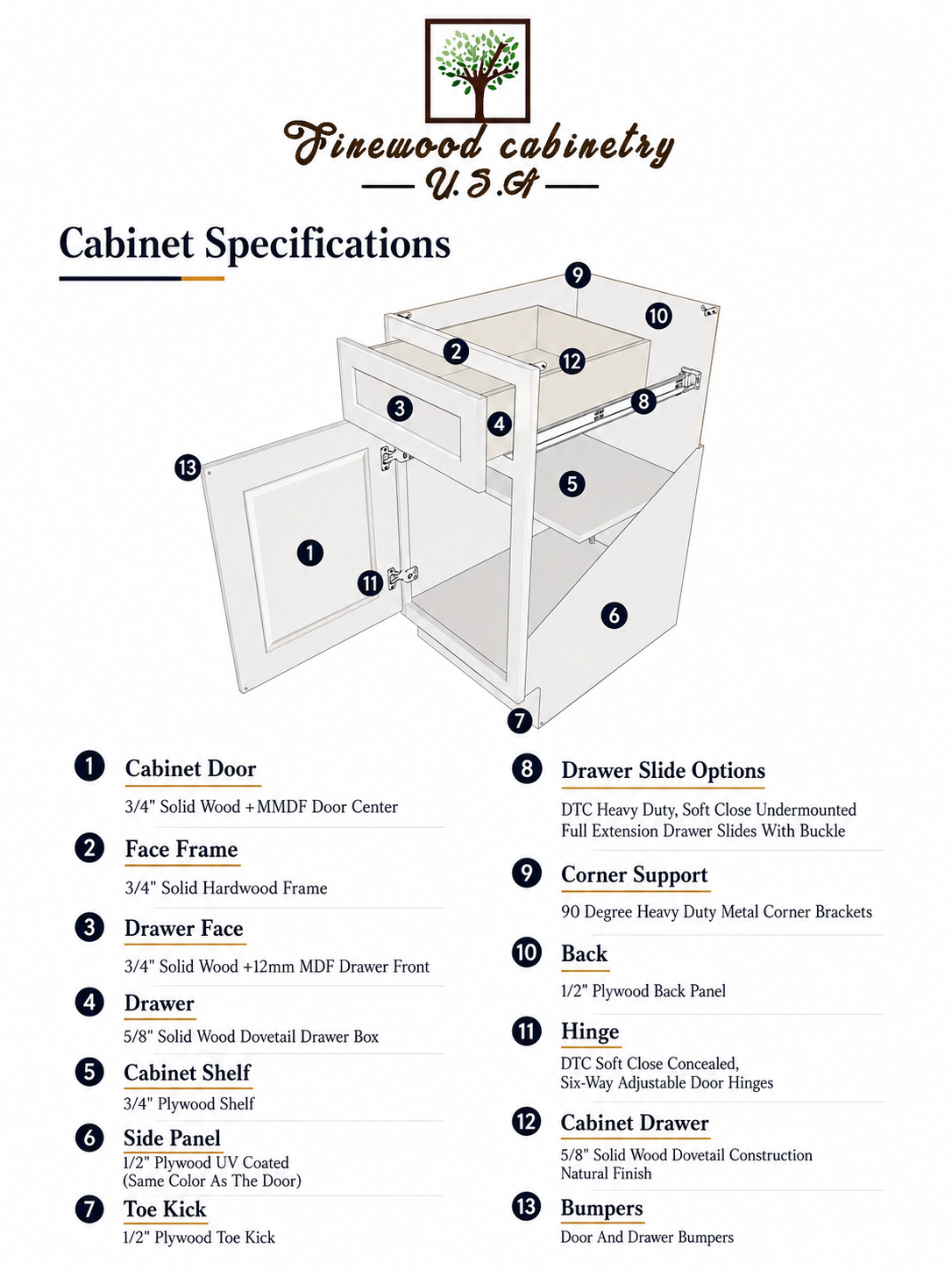

Finewood Cabinet Specifications
Door and frame construction, dovetail drawers, plywood panels and shelving, soft-close hardware, and cabinet supports.
View full specification ↗

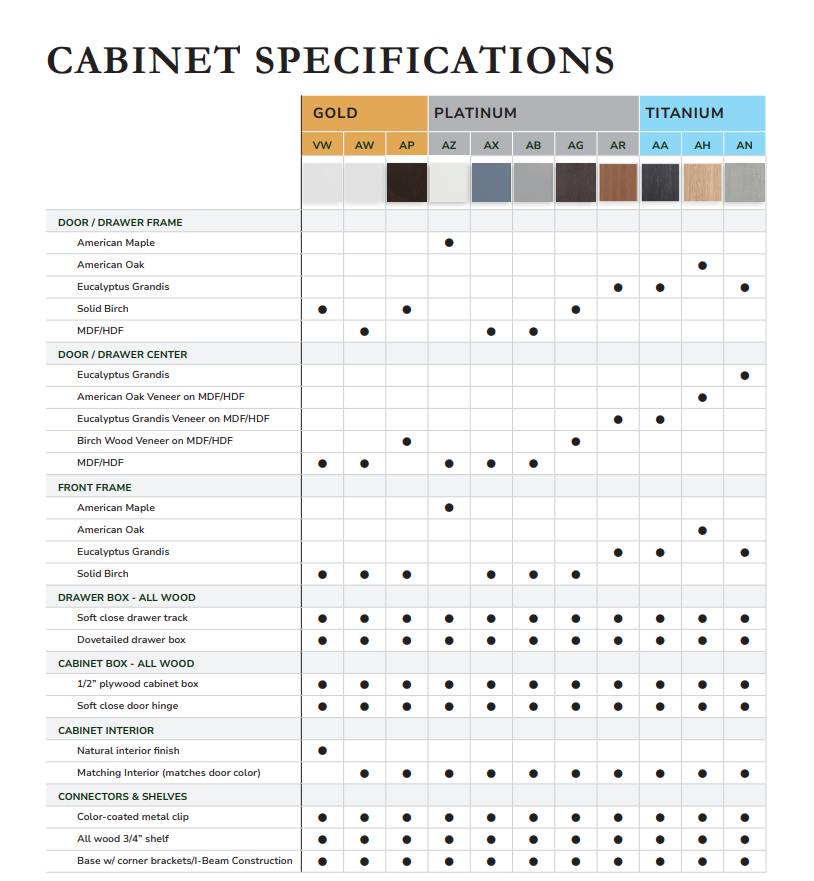

Forevermark Cabinet Specifications
Page 1 · Gold, Platinum, and Titanium collections.
View full specification ↗

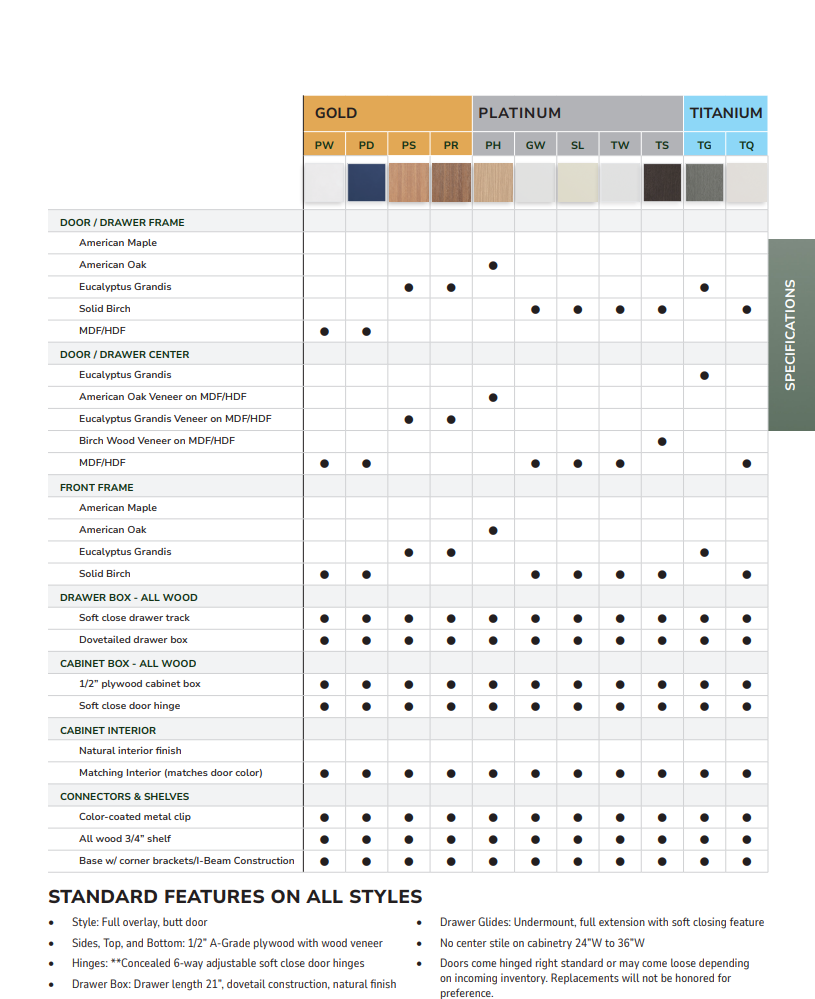

Forevermark Cabinet Specifications
Page 2 · Gold, Platinum, and Titanium collections. Includes standard features across all styles.
View full specification ↗DW-Cabinetry
Cabinet Construction
DW-Cabinetry
DOOR
- Full overlay door with mortise and tenon construction
- Inset-style door with mortise and tenon construction
- 3/4" Solid wood door frames with 3/8" MDF center panel
- Soft-close mechanism integrated in concealed six-way adjustable hinges
DW-Cabinetry
DRAWER BOX
- 5-piece recessed panel drawer fronts
- 5/8" solid wood drawer box with dovetail construction
- Full extension concealed drawer runners
DW-Cabinetry
BOX
- Dovetail construction
- 1/2" select plywood construction
- 3/4" adjustable shelves edge-banded in wood veneer natural finish
- Base cabinet has 18" deep shelves
- 4 1/2" height solid wood toe kick in wood veneer natural finish
DW-Cabinetry
FINISHING
- Natural Wood Interior
- Unfinished Sides
J&K Cabinetry
Standard Cabinet Features
All J&K cabinets and vanities are constructed with 100% solid wood and include these standard features.
J&K Cabinetry
DOOR PANEL
- 3/4"-thick solid wood; full overlay door
J&K Cabinetry
DOOR HINGE
- 6-way adjustable; soft-close metal; hidden Euro-style
J&K Cabinetry
ADJUSTABLE SHELF
- 3/4"-thick cabinet-grade plywood; clear coat finish on all sides and edges; with metal shelf rests
J&K Cabinetry
DRAWER
- 5/8" solid wood on all sides; dovetail construction
J&K Cabinetry
DRAWER GLIDE
- Full extension pull-out; soft-close metal; concealed under-mount
J&K Cabinetry
PLYWOOD BOX
- 1/2" to 5/8"-thick cabinet-grade plywood; clear coat finish on interior sides; matching color finish on exterior sides
J&K Cabinetry
METAL BRACKET
- Corner bracket reinforcements in base cabinets for maximum stability
J&K Cabinetry
DOOR BUMPER
- Promote quiet-closing and reduce slamming for maximum durability
21st Century Cabinetry
21st Century Cabinet Specification
- Veneered solid wood door frame and HDF center panel; plywood sides
- Soft-close drawers and doors
- ¾″ shelves
- 6-way adjustable hinges
- Natural finish inside
Parriott Wood
Parriott Wood Cabinet Specification
- Frame
- Solid wood
- Door Frame
- Full overlay solid wood
- Center Panel
- Medium density fiberboard (MDF)
- Finish
- Stain or paint – depending on color
- Drawer Box
- Solid wood with dovetail construction
- Drawer Slides
- Full extension undermount soft close
- Hinges
- Soft close adjustable concealed hinges
- Cabinet Box
- ½″ plywood
- Shelves
- Laminate plywood
- Toe-Kick
- Plywood, color-matched
- Box Interior & Sides
- Color-matched

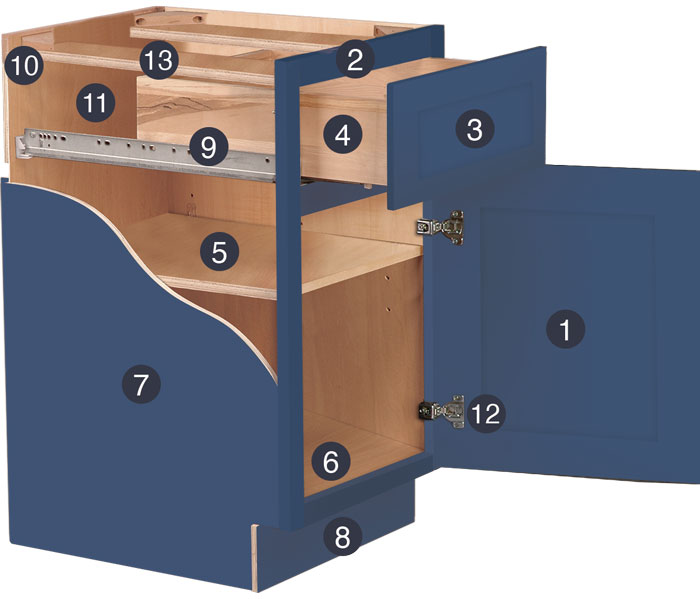

TC Series · Tribeca Cabinetry
Cabinet Specifications
Cabinet construction and component details in one specification card.
Standard Cabinet Features
| Part | Specification |
|---|---|
| Door | 3/4" solid wood door frames with HDF center panel. Mortise and tenon construction for all doors except Southampton. Southampton doors feature a 3/4" wide applied solid wood frame with an HDF center. Southampton doors are 7/8" thick. |
| Face Frame | 3/4" solid wood face frame. |
| Drawer Face | 3/4" solid wood drawer frames with HDF center panel. Mortise and tenon construction for all drawer faces except Southampton. Southampton drawer faces feature a 3/4" wide applied solid wood frame with an HDF center. Southampton drawer faces are 7/8" thick. |
| Drawer | 3/4" solid wood dovetailed drawer. |
| Shelf | 3/4" full depth veneered adjustable shelves with UV finish and edge banding. Stainless steel shelf clips lock into pre-drilled holes in the bottom of the shelf for support. |
| Bottom | 1/2" veneered plywood with UV finish. |
| Side Panel | 1/2" matching veneered plywood with UV finish for all products except WRO lines. WRO cabinet sides have a natural UV finish unless a finished end is specified. |
| Toe Kick | 1/2" plywood toe kick. |
| Drawer Slide Options | Undermount four-way adjustable full extension soft-close slides for all doors except Southampton. Southampton features an undermount, six-way adjustable full extension slide. |
| Corner Support | Wood corner supports for added stability and structural support. |
| Back | 1/2" veneered plywood with UV finish interior. |
| Hinge | Concealed 6-way soft close. |
| Plywood Support Beams | 1/4" structural support beams are utilized for additional stability. |
K2 Cabinets
Cabinet Specifications
